Create an External CollectionCompatible with Milvus 3.0.x

An external collection is a type of data collection in Milvus that accesses data from external storage systems such as AWS S3 and Iceberg without copying it into Milvus. It acts as a query layer over data lakes while maintaining compatibility with Milvus query interfaces.

Overview

In a typical AI data pipeline, users may already have stored their data in Parquet or other formats on their storage system, such as AWS S3. To make Milvus consume this externally stored data, users usually need to import it into Milvus’ own storage using Extract-Transform-Load (ETL) pipelines.

This bring-your-data-to-Milvus workflow creates redundant data that is hard to synchronize and adds to the engineering maintenance burden to ensure data consistency.

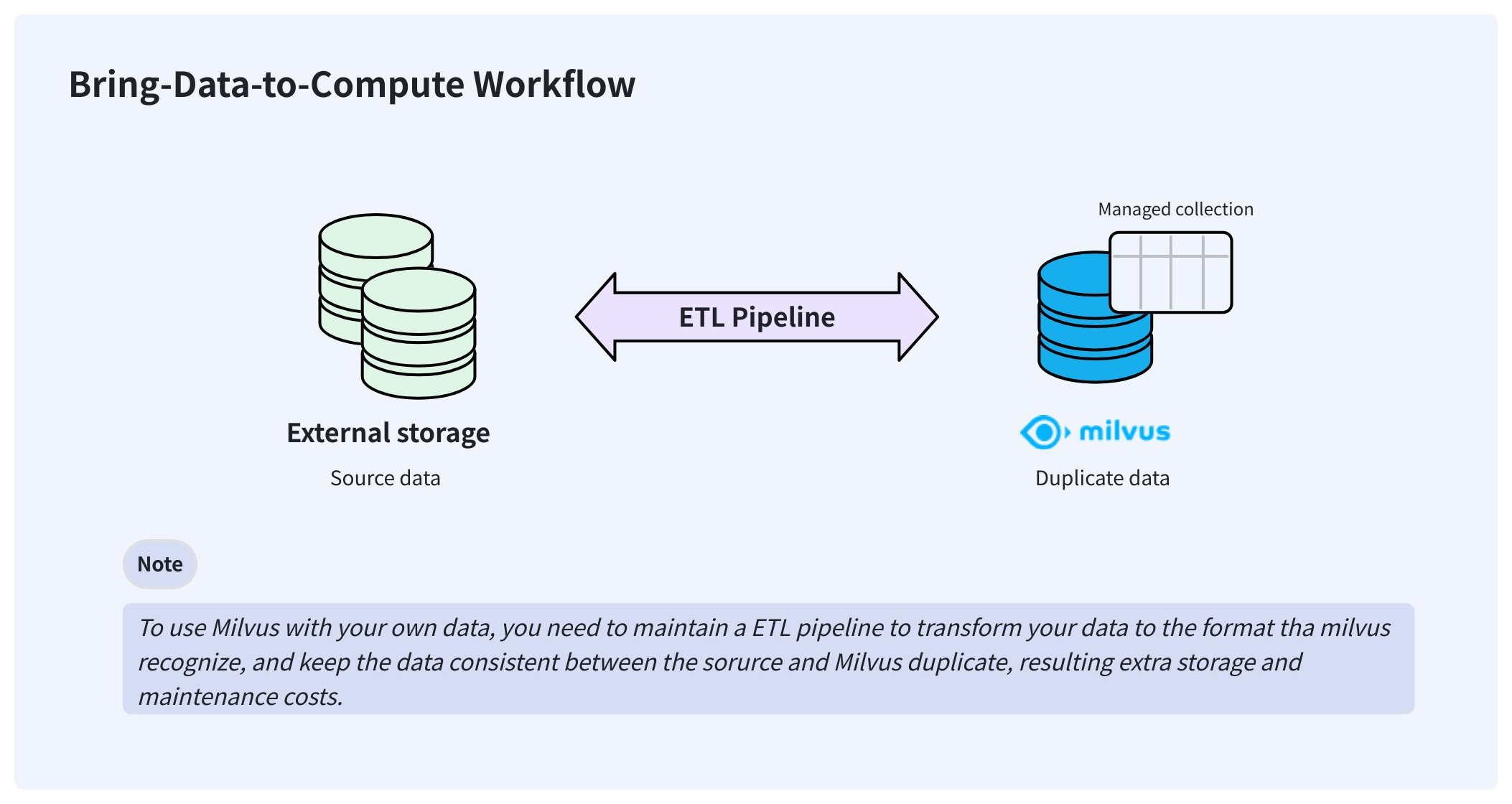

Bring data to compute workflow

To resolve these issues, Milvus delivers external collections that let you access your externally stored data from Milvus without worrying about data synchronization and ETL pipelines.

Bring compute to data workflow

Once created, an external collection can access your data directly and keep it in the same place where you store it. In the background, Milvus creates manifest files to record the mappings between the Milvus metadata and the rows in external data files. After the manifest files are ready, you can create indexes in the external collection as you would in any managed collection.

When your data changes, manually triggering a sub-second refresh updates the metadata, keeping Milvus always up to date.

Limits & restrictions

Since Milvus does not store raw data and only maintains a mapping between the metadata and raw data, external collections are read-only. That means you cannot insert, upsert, delete, import, flush, and compact data at the Milvus side.

When compared with managed collections, external collections have the following limits:

• You cannot set the primary key and its AutoID attributes.

• You cannot enable the dynamic field.

• You cannot set the partition key and clustering key, because partitions are not available.

• You cannot define functions in the schema.

• You cannot change the schema of an external collection once you create it.

• You cannot use the text match with BM25.

• You must trigger a refresh operation before creating indexes.

Step 1: Create schema

As with creating a managed collection, you also need to create a schema before creating an external collection. However, the schema is slightly different from that of a managed collection.

from pymilvus import MilvusClient, DataType

schema = MilvusClient.create_schema(
    external_source='s3://s3.<region-id>.amazonaws.com/<bucket>/',
    external_spec='{
        "format": "parquet"，
        "extfs": {
            ...
        }
    }'
)

// Java

import (
    "github.com/milvus-io/milvus/client/v2/entity"
    client "github.com/milvus-io/milvus/client/v2/milvusclient"
)

schema := entity.NewSchema().
    WithName("product_embeddings").
    WithExternalSource("s3://my-bucket/embeddings/").
    WithExternalSpec(`{"format": "parquet", "extfs": { ... }}`)

// node

# restful

To create the schema for an external collection, you need to specify the source data URI, the data format, and authentication settings.

{
    "format": "...",
    "extfs": {
        "access_key_id":     "AKIA..",
        "access_key_value":  "u4Lh...",
        "region":            "us-west-2",
        "cloud_provider":    "aws",
        "use_ssl":           "true",
        "use_virtual_host":  "true"
    }
}

{
    "format": "...",
    "extfs": {
        "use_iam":           "true",
        "iam_endpoint":      "https://sts.<region>.amazonaws.com",
        "region":            "us-west-2",
        "cloud_provider":    "aws",
        "use_ssl":           "true"
    }
}

{
    "format": "...",
    "extfs": {
        "storage_type": "remote"
    }
}

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "s3:ListBucket",
                "s3:GetBucketLocation"
            ],
            "Resource": "arn:aws:s3:::SOURCE-DATA-BUCKET"
        },
        {
            "Effect": "Allow",
            "Action": [
                "s3:GetObject",
                "s3:PutObject",
                "s3:DeleteObject"
            ],
            "Resource": "arn:aws:s3:::SOURCE-DATA-BUCKET/*"
        }
    ]
}

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::ACCOUNT_RUNNING_MILVUS:root"
      },
      "Action": "sts:AssumeRole",
      "Condition": {
        "StringEquals": {
          "sts:ExternalId": "YOUR_UNIQUE_EXTERNAL_ID"
        }
      }
    }
  ]
}

{
    "format": "...",
    "extfs": {
        "cloud_provider": "aws",
        "region": "us-west-2",
        "storage_type": "remote",
        "use_ssl": "true",
        "use_iam": "true",
        "role_arn": "arn:aws:iam::306787000000:role/lentitude-bucket-role",
        "external_id": "YOUR_UNIQUE_EXTERNAL_ID",
        "load_frequency": "900"
    }
}

Step 2: Add fields

Once the schema is ready, you can add fields as follows:

schema.add_field(
    field_name="product_id",
    datatype=DataType.INT64,
    # highlight-next
    external_field="id" # field name in the external data file
)

schema.add_field(
    field_name="product_name",
    datatype=DataType.VARCHAR,
    max_length=256,
    # highlight-next
    external_field="name"
)

schema.add_field(
    field_name="embedding",
    datatype=DataType.FLOAT_VECTOR,
    dim=768,
    # highlight-next
    external_field="vector"
)

// Java

import (
    "github.com/milvus-io/milvus/client/v2/entity"
    client "github.com/milvus-io/milvus/client/v2/milvusclient"
)

schema = schema.
    WithField(
        entity.NewField().
            WithName("product_id").
            WithDataType(entity.FieldTypeInt64).
            WithExternalField("id"),
    ).
    WithField(
        entity.NewField().
            WithName("product_name").
            WithDataType(entity.FieldTypeVarChar).
            WithMaxLength(512).
            WithExternalField("name"),
    ).
    WithField(
        entity.NewField().
            WithName("embedding").
            WithDataType(entity.FieldTypeFloatVector).
            WithDim(768).
            WithExternalField("vector"),
    )

// node

# restful

Step 3: Create a collection

After adding all the fields to the schema, you can create the collection.

client = MilvusClient(
    uri="http://localhost:19530",
    token="root:Milvus"
)

client.create_collection(
    collection_name="test_collection",
    schema=schema
)

// Java

import (
    "github.com/milvus-io/milvus/client/v2/entity"
    client "github.com/milvus-io/milvus/client/v2/milvusclient"
)

ctx, cancel := context.WithCancel(context.Background())
defer cancel()

milvusAddr := "http://localhost:19530"
token := "root:Milvus"

client, err := milvusclient.New(ctx, &milvusclient.ClientConfig{
    Address: milvusAddr,
    APIKey: token
})

err = client.CreateCollection(ctx, milvusclient.NewCreateCollectionOption("test_collection", schema).
    WithIndexOptions(indexOptions...))

if err != nil {
    fmt.Println(err.Error())
    // handle error
}

// node

# restful

Step 4: Refresh data

Once the collection is ready, you need to perform a refresh to synchronize the metadata from your data to Milvus.

job_id = client.refresh_external_collection(
    collection_name="test_collection"
)

while True:
    progress = client.get_refresh_external_collection_progress(job_id=job_id)
    print(f"  {progress.state}: {progress.progress}%")

    if progress.state == "RefreshCompleted":
        elapsed = progress.end_time - progress.start_time
        print(f"  Completed in {elapsed}ms")
        return job_id
    elif progress.state == "RefreshFailed":
        print(f"  Failed: {progress.reason}")
        return job_id

    time.sleep(2)

// Java

refreshResult, err := client.RefreshExternalCollection(ctx,
    client.NewRefreshExternalCollectionOption("test_collection"))

jobID := refreshResult.JobID

for {
    progress, _ := client.GetRefreshExternalCollectionProgress(ctx,
        client.NewGetRefreshExternalCollectionProgressOption(jobID))

    fmt.Printf("State: %s\n", progress.State)

    if progress.State == entity.RefreshStateCompleted {
        fmt.Println("Refresh completed!")
        break
    }
    if progress.State == entity.RefreshStateFailed {
        fmt.Printf("Refresh failed: %s\n", progress.Reason)
        break
    }
    time.Sleep(2 * time.Second)
}

// node

# restful

The refresh operation is asynchronous, so you need to set up an iteration to monitor its progress.

Follow-ups

Once you have conducted a refresh operation on the external collection and the manifest files are available, you can create indexes, load/release collections, and conduct similarity searches and queries in the external collection as you would in any managed collections.
