Sparse Vector

Sparse vectors are an important method of data representation in information retrieval and natural language processing. While dense vectors are popular for their excellent semantic understanding capabilities, sparse vectors often provide more accurate results when it comes to applications that require precise matching of keywords or phrases.

Overview

A sparse vector is a special representation of high-dimensional vectors where most elements are zero, and only a few dimensions have non-zero values. This characteristic makes sparse vectors particularly effective in handling large-scale, high-dimensional, but sparse data. Common applications include:

• Text Analysis: Representing documents as bag-of-words vectors, where each dimension corresponds to a word, and only words that appear in the document have non-zero values.

• Recommendation Systems: User-item interaction matrices, where each dimension represents a user’s rating for a particular item, with most users interacting with only a few items.

• Image Processing: Local feature representation, focusing only on key points in the image, resulting in high-dimensional sparse vectors.

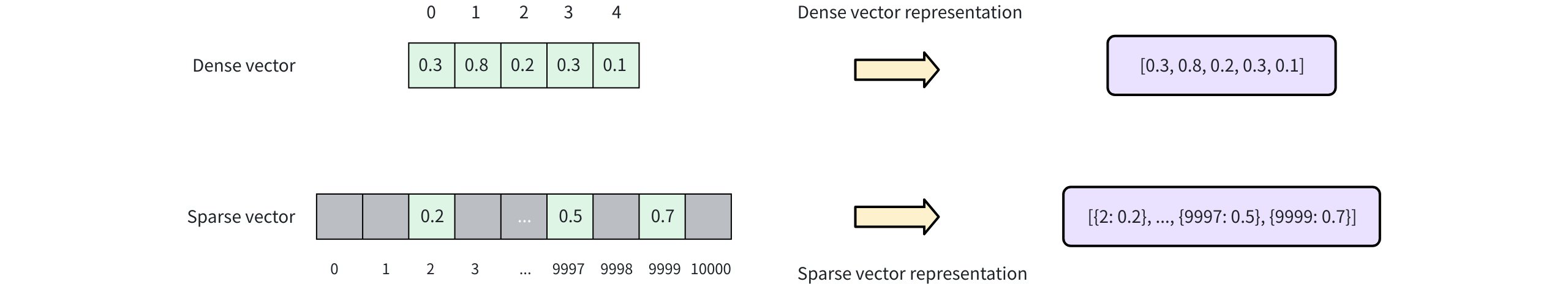

As shown in the diagram below, dense vectors are typically represented as continuous arrays where each position has a value (e.g., [0.3, 0.8, 0.2, 0.3, 0.1]). In contrast, sparse vectors store only non-zero elements and their indices, often represented as key-value pairs (e.g., [{2: 0.2}, ..., {9997: 0.5}, {9999: 0.7}]). This representation significantly reduces storage space and increases computational efficiency, especially when dealing with extremely high-dimensional data (e.g., 10,000 dimensions).

Spare vector representation

Sparse vectors can be generated using various methods, such as TF-IDF (Term Frequency-Inverse Document Frequency) and BM25 in text processing. Additionally, Milvus offers convenient methods to help generate and process sparse vectors. For details, refer to Embeddings.

For text data, Milvus also provides full-text search capabilities, allowing you to perform vector searches directly on raw text data without using external embedding models to generate sparse vectors. For more information, refer to Full Text Search.

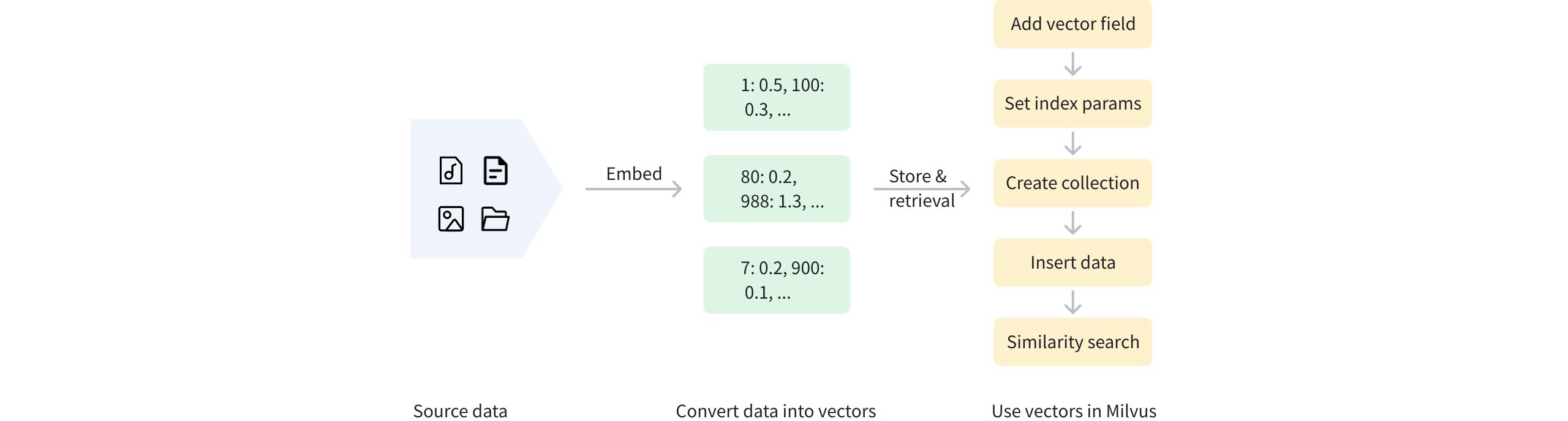

After vectorization, the data can be stored in Milvus for management and vector retrieval. The diagram below illustrates the basic process.

Use sparse vector in Milvus

Use sparse vectors in Milvus

Milvus supports representing sparse vectors in any of the following formats:

• Sparse Matrix (using the scipy.sparse class)

  Python Java Node.js cURL

  from scipy.sparse import csr_matrix

  # Create a sparse matrix
  row = [0, 0, 1, 2, 2, 2]
  col = [0, 2, 2, 0, 1, 2]
  data = [1, 2, 3, 4, 5, 6]
  sparse_matrix = csr_matrix((data, (row, col)), shape=(3, 3))

  # Represent sparse vector using the sparse matrix
  sparse_vector = sparse_matrix.getrow(0)



• List of Dictionaries (formatted as {dimension_index: value, ...})

  Python Java Node.js cURL

  # Represent sparse vector using a dictionary
  sparse_vector = [{1: 0.5, 100: 0.3, 500: 0.8, 1024: 0.2, 5000: 0.6}]



  SortedMap<Long, Float> sparseVector = new TreeMap<>();
  sparseVector.put(1L, 0.5f);
  sparseVector.put(100L, 0.3f);
  sparseVector.put(500L, 0.8f);
  sparseVector.put(1024L, 0.2f);
  sparseVector.put(5000L, 0.6f);



• List of Tuple Iterators (formatted as [(dimension_index, value)])

  Python Java Node.js cURL

  # Represent sparse vector using a list of tuples
  sparse_vector = [[(1, 0.5), (100, 0.3), (500, 0.8), (1024, 0.2), (5000, 0.6)]]



Add vector field

To use sparse vectors in Milvus, define a field for storing sparse vectors when creating a collection. This process includes:

1. Setting datatype to the supported sparse vector data type, SPARSE_FLOAT_VECTOR.

2. No need to specify the dimension.

from pymilvus import MilvusClient, DataType

client = MilvusClient(uri="http://localhost:19530")

client.drop_collection(collection_name="my_sparse_collection")

schema = client.create_schema(
    auto_id=True,
    enable_dynamic_fields=True,
)

schema.add_field(field_name="pk", datatype=DataType.VARCHAR, is_primary=True, max_length=100)
schema.add_field(field_name="sparse_vector", datatype=DataType.SPARSE_FLOAT_VECTOR)

import io.milvus.v2.client.ConnectConfig;
import io.milvus.v2.client.MilvusClientV2;

import io.milvus.v2.common.DataType;
import io.milvus.v2.service.collection.request.AddFieldReq;
import io.milvus.v2.service.collection.request.CreateCollectionReq;

MilvusClientV2 client = new MilvusClientV2(ConnectConfig.builder()
        .uri("http://localhost:19530")
        .build());

CreateCollectionReq.CollectionSchema schema = client.createSchema();
schema.setEnableDynamicField(true);
schema.addField(AddFieldReq.builder()
        .fieldName("pk")
        .dataType(DataType.VarChar)
        .isPrimaryKey(true)
        .autoID(true)
        .maxLength(100)
        .build());

schema.addField(AddFieldReq.builder()
        .fieldName("sparse_vector")
        .dataType(DataType.SparseFloatVector)
        .build());

import { DataType } from "@zilliz/milvus2-sdk-node";

const schema = [
  {
    name: "metadata",
    data_type: DataType.JSON,
  },
  {
    name: "pk",
    data_type: DataType.Int64,
    is_primary_key: true,
  },
  {
    name: "sparse_vector",
    data_type: DataType.SparseFloatVector,
  }
];

export primaryField='{
    "fieldName": "pk",
    "dataType": "VarChar",
    "isPrimary": true,
    "elementTypeParams": {
        "max_length": 100
    }
}'

export vectorField='{
    "fieldName": "sparse_vector",
    "dataType": "SparseFloatVector"
}'

export schema="{
    \"autoID\": true,
    \"fields\": [
        $primaryField,
        $vectorField
    ]
}"

In this example, a vector field named sparse_vector is added for storing sparse vectors. The data type of this field is SPARSE_FLOAT_VECTOR.

Set index params for vector field

The process of creating an index for sparse vectors is similar to that for dense vectors, but with differences in the specified index type (index_type), distance metric (metric_type), and index parameters (params).

index_params = client.prepare_index_params()

index_params.add_index(
    field_name="sparse_vector",
    index_name="sparse_inverted_index",
    index_type="SPARSE_INVERTED_INDEX",
    metric_type="IP",
    params={"drop_ratio_build": 0.2},
)

import io.milvus.v2.common.IndexParam;
import java.util.*;

List<IndexParam> indexes = new ArrayList<>();
Map<String,Object> extraParams = new HashMap<>();
extraParams.put("drop_ratio_build", 0.2);
indexes.add(IndexParam.builder()
        .fieldName("sparse_vector")
        .indexName("sparse_inverted_index")
        .indexType(IndexParam.IndexType.SPARSE_INVERTED_INDEX)
        .metricType(IndexParam.MetricType.IP)
        .extraParams(extraParams)
        .build());

const indexParams = await client.createIndex({
    index_name: 'sparse_inverted_index',
    field_name: 'sparse_vector',
    metric_type: MetricType.IP,
    index_type: IndexType.SPARSE_WAND,
    params: {
      drop_ratio_build: 0.2,
    },
});

export indexParams='[
        {
            "fieldName": "sparse_vector",
            "metricType": "IP",
            "indexName": "sparse_inverted_index",
            "indexType": "SPARSE_INVERTED_INDEX",
            "params":{"drop_ratio_build": 0.2}
        }
    ]'

In the example above:

• An index of type SPARSE_INVERTED_INDEX is created for the sparse vector. For sparse vectors, you can specify SPARSE_INVERTED_INDEX or SPARSE_WAND. For details, refer to Sparse Vector Indexes.

• For sparse vectors, metric_type only supports IP (Inner Product), used to measure the similarity between two sparse vectors. For more information on similarity, refer to Metric Types.

• drop_ratio_build is an optional index parameter specifically for sparse vectors. It controls the proportion of small vector values excluded during index building. For example, with {"drop_ratio_build": 0.2}, the smallest 20% of vector values will be excluded during index creation, reducing computational effort during searches.

Create collection

Once the sparse vector and index settings are complete, you can create a collection that contains sparse vectors. The example below uses the create_collection method to create a collection named my_sparse_collection.

client.create_collection(
    collection_name="my_sparse_collection",
    schema=schema,
    index_params=index_params
)

import io.milvus.v2.client.ConnectConfig;
import io.milvus.v2.client.MilvusClientV2;

MilvusClientV2 client = new MilvusClientV2(ConnectConfig.builder()
        .uri("http://localhost:19530")
        .build());

CreateCollectionReq requestCreate = CreateCollectionReq.builder()
        .collectionName("my_sparse_collection")
        .collectionSchema(schema)
        .indexParams(indexes)
        .build();
client.createCollection(requestCreate);

import { MilvusClient } from "@zilliz/milvus2-sdk-node";

const client = new MilvusClient({
    address: 'http://localhost:19530'
});

await client.createCollection({
    collection_name: 'my_sparse_collection',
    schema: schema,
    index_params: indexParams
});

curl --request POST \
--url "${CLUSTER_ENDPOINT}/v2/vectordb/collections/create" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Content-Type: application/json" \
-d "{
    \"collectionName\": \"my_sparse_collection\",
    \"schema\": $schema,
    \"indexParams\": $indexParams
}"

Insert data

After creating the collection, insert data containing sparse vectors.

sparse_vectors = [
    {"sparse_vector": {1: 0.5, 100: 0.3, 500: 0.8}},
    {"sparse_vector": {10: 0.1, 200: 0.7, 1000: 0.9}},
]

client.insert(
    collection_name="my_sparse_collection",
    data=sparse_vectors
)

import com.google.gson.Gson;
import com.google.gson.JsonObject;
import io.milvus.v2.service.vector.request.InsertReq;
import io.milvus.v2.service.vector.response.InsertResp;

List<JsonObject> rows = new ArrayList<>();
Gson gson = new Gson();
{
    JsonObject row = new JsonObject();
    SortedMap<Long, Float> sparse = new TreeMap<>();
    sparse.put(1L, 0.5f);
    sparse.put(100L, 0.3f);
    sparse.put(500L, 0.8f);
    row.add("sparse_vector", gson.toJsonTree(sparse));
    rows.add(row);
}
{
    JsonObject row = new JsonObject();
    SortedMap<Long, Float> sparse = new TreeMap<>();
    sparse.put(10L, 0.1f);
    sparse.put(200L, 0.7f);
    sparse.put(1000L, 0.9f);
    row.add("sparse_vector", gson.toJsonTree(sparse));
    rows.add(row);
}

InsertResp insertR = client.insert(InsertReq.builder()
        .collectionName("my_sparse_collection")
        .data(rows)
        .build());

const data = [
  { sparse_vector: { "1": 0.5, "100": 0.3, "500": 0.8 } },
  { sparse_vector: { "10": 0.1, "200": 0.7, "1000": 0.9 } },
];
client.insert({
  collection_name: "my_sparse_collection",
  data: data,
});

curl --request POST \
--url "${CLUSTER_ENDPOINT}/v2/vectordb/entities/insert" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Content-Type: application/json" \
-d '{
    "data": [
        {"sparse_vector": {"1": 0.5, "100": 0.3, "500": 0.8}},
        {"sparse_vector": {"10": 0.1, "200": 0.7, "1000": 0.9}}
    ],
    "collectionName": "my_sparse_collection"
}'

## {"code":0,"cost":0,"data":{"insertCount":2,"insertIds":["453577185629572534","453577185629572535"]}}

Perform similarity search

To perform similarity search using sparse vectors, prepare the query vector and search parameters.

# Prepare search parameters
search_params = {
    "params": {"drop_ratio_search": 0.2},  # Additional optional search parameters
}

# Prepare the query vector
query_vector = [{1: 0.2, 50: 0.4, 1000: 0.7}]

In this example, drop_ratio_search is an optional parameter specifically for sparse vectors, allowing fine-tuning of small values in the query vector during the search. For example, with {"drop_ratio_search": 0.2}, the smallest 20% of values in the query vector will be ignored during the search.

Then, execute the similarity search using the search method:

res = client.search(
    collection_name="my_sparse_collection",
    data=query_vector,
    limit=3,
    output_fields=["pk"],
    search_params=search_params,
)

print(res)

# Output
# data: ["[{'id': '453718927992172266', 'distance': 0.6299999952316284, 'entity': {'pk': '453718927992172266'}}, {'id': '453718927992172265', 'distance': 0.10000000149011612, 'entity': {'pk': '453718927992172265'}}]"]

import io.milvus.v2.service.vector.request.SearchReq;
import io.milvus.v2.service.vector.request.data.SparseFloatVec;
import io.milvus.v2.service.vector.response.SearchResp;

Map<String,Object> searchParams = new HashMap<>();
searchParams.put("drop_ratio_search", 0.2);

SortedMap<Long, Float> sparse = new TreeMap<>();
sparse.put(10L, 0.1f);
sparse.put(200L, 0.7f);
sparse.put(1000L, 0.9f);

SparseFloatVec queryVector = new SparseFloatVec(sparse);

SearchResp searchR = client.search(SearchReq.builder()
        .collectionName("my_sparse_collection")
        .data(Collections.singletonList(queryVector))
        .annsField("sparse_vector")
        .searchParams(searchParams)
        .topK(3)
        .outputFields(Collections.singletonList("pk"))
        .build());

System.out.println(searchR.getSearchResults());

// Output
//
// [[SearchResp.SearchResult(entity={pk=453444327741536759}, score=1.31, id=453444327741536759), SearchResp.SearchResult(entity={pk=453444327741536756}, score=1.31, id=453444327741536756), SearchResp.SearchResult(entity={pk=453444327741536753}, score=1.31, id=453444327741536753)]]

client.search({
    collection_name: 'my_sparse_collection',
    data: {1: 0.2, 50: 0.4, 1000: 0.7},
    limit: 3,
    output_fields: ['pk'],
    params: {
        drop_ratio_search: 0.2
    }
});

curl --request POST \
--url "${CLUSTER_ENDPOINT}/v2/vectordb/entities/search" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Content-Type: application/json" \
-d '{
    "collectionName": "my_sparse_collection",
    "data": [
        {"1": 0.2, "50": 0.4, "1000": 0.7}
    ],
    "annsField": "sparse_vector",
    "limit": 3,
    "searchParams":{
        "params":{"drop_ratio_search": 0.2}
    },
    "outputFields": ["pk"]
}'

## {"code":0,"cost":0,"data":[{"distance":0.63,"id":"453577185629572535","pk":"453577185629572535"},{"distance":0.1,"id":"453577185629572534","pk":"453577185629572534"}]}

For more information on similarity search parameters, refer to Basic ANN Search.

Limits

When using sparse vectors in Milvus, consider the following limits:

• Currently, only the IP and BM25 (for full-text search) distance metrics are supported for sparse vectors. The high dimensionality of sparse vectors makes L2 and cosine distance impractical.

• For sparse vector fields, only the SPARSE_INVERTED_INDEX and SPARSE_WAND index types are supported.

• The data types supported for sparse vectors:

  • The dimension part must be an unsigned 32-bit integer;
  • The value part can be a non-negative 32-bit floating-point number.

• Sparse vectors must meet the following requirements for insertion and search:

  • At least one value in the vector is non-zero;
  • Vector indices are non-negative.

FAQ

• Can you explain the difference between SPARSE_INVERTED_INDEX and SPARSE_WAND, and how do I choose between them?

  SPARSE_INVERTED_INDEX is a traditional inverted index, while SPARSE_WAND uses the Weak-AND algorithm to reduce the number of full IP distance evaluations during search. SPARSE_WAND is typically faster, but its performance can decline with increasing vector density. To choose between them, conduct experiments and benchmarks based on your specific dataset and use case.

• How should I choose the drop_ratio_build and drop_ratio_search parameters?

  The choice of drop_ratio_build and drop_ratio_search depends on the characteristics of your data and your requirements for search latency/throughput and accuracy.

• Can the dimension of a sparse embedding be any discrete value within the uint32 space?

  Yes, with one exception. The dimension of a sparse embedding can be any value in the range of [0, maximum of uint32). This means you cannot use the maximum value of uint32.

• Are searches on growing segments conducted through an index or by brute force?

  Searches on growing segments are conducted through an index of the same type as the sealed segment index. For new growing segments before the index is built, a brute force search is used.

• Is it possible to have both sparse and dense vectors in a single collection?

  Yes, with multiple vector type support, you can create collections with both sparse and dense vector columns and perform hybrid searches on them.
