Use Partition Key

The Partition Key is a search optimization solution based on partitions. By designating a specific scalar field as the Partition Key and specifying filtering conditions based on the Partition Key during the search, the search scope can be narrowed down to several partitions, thereby improving search efficiency. This article will introduce how to use the Partition Key and related considerations.

Overview

In Milvus, you can use partitions to implement data segregation and improve search performance by restricting the search scope to specific partitions. If you choose to manage partitions manually, you can create a maximum of 1,024 partitions in a collection, and insert entities into these partitions based on a specific rule so that you can narrow the search scope by restricting searches within a specific number of partitions.

Milvus introduces the Partition Key for you to reuse partitions in data segregation to overcome the limit on the number of partitions you can create in a collection. When creating a collection, you can use a scalar field as the Partition Key. Once the collection is ready, Milvus creates the specified number of partitions inside the collection with each partition corresponding to a range of the values in the Partition Key. Upon receiving inserted entities, Milvus stores them into different partitions based on their Partition Key values.

Partition v.s. Partition Key

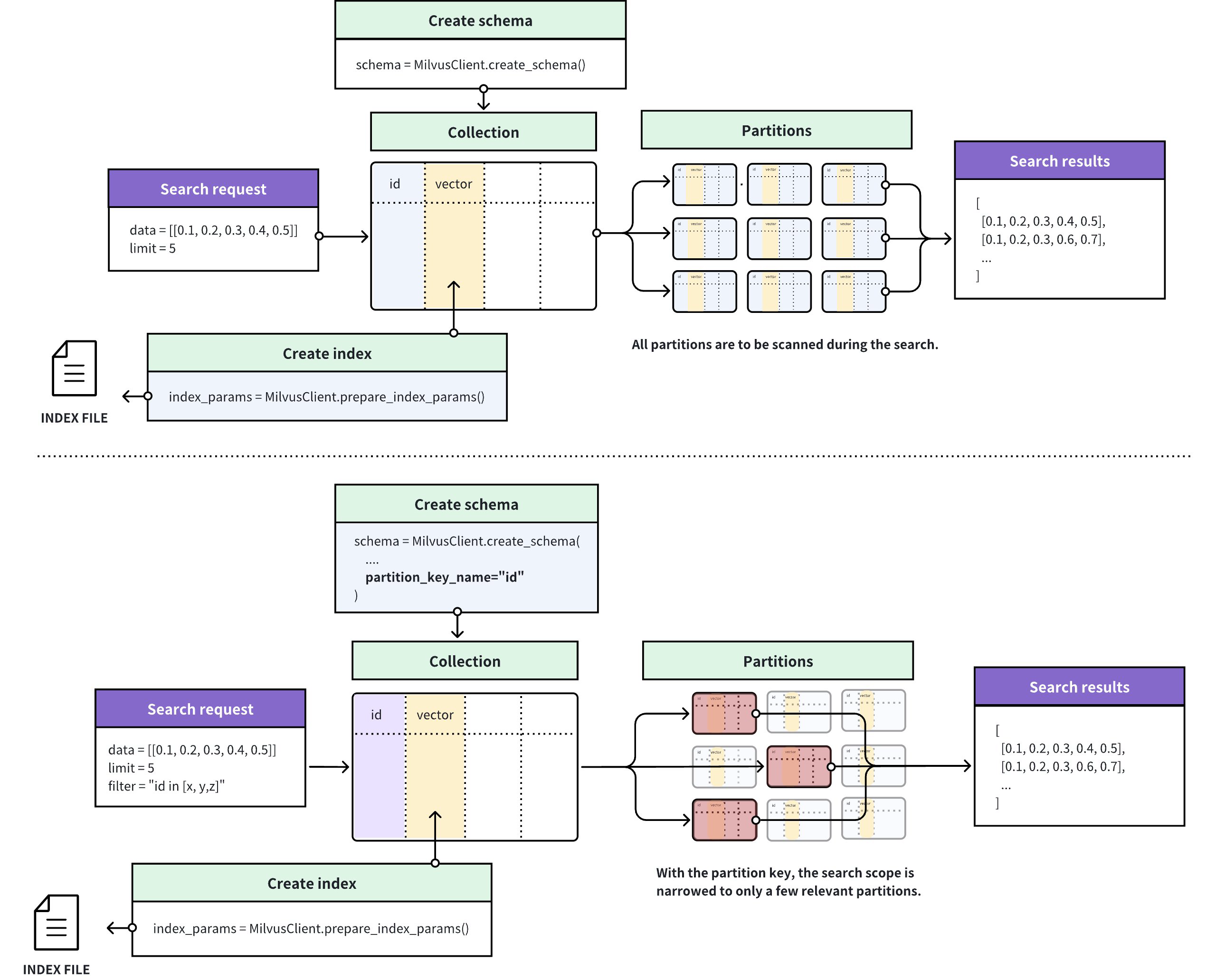

The following figure illustrates how Milvus processes the search requests in a collection with or without the Partition Key feature enabled.

• If the Partition Key is disabled, Milvus searches for entities that are the most similar to the query vector within the collection. You can narrow the search scope if you know which partition contains the most relevant results.

• If the Partition Key is enabled, Milvus determines the search scope based on the Partition Key value specified in a search filter and scans only the entities within the partitions that match.

With or Without Partition Key

Use Partition Key

To use the Partition Key, you need to

• Set the Partition Key,

• Set the number of partitions to create (Optional), and

• Create a filtering condition based on the Partition Key.

Set Partition Key

To designate a scalar field as the Partition Key, you need to set its is_partition_key attribute to true when you add the scalar field.

from pymilvus import (
    MilvusClient, DataType
)

client = MilvusClient(
    uri="http://localhost:19530",
    token="root:Milvus"
)

schema = client.create_schema()

# Add the partition key
schema.add_field(
    field_name="my_varchar",
    datatype=DataType.VARCHAR,
    max_length=512,
    # highlight-next-line
    is_partition_key=True,
)

import io.milvus.v2.client.ConnectConfig;
import io.milvus.v2.client.MilvusClientV2;
import io.milvus.v2.common.DataType;
import io.milvus.v2.service.collection.request.AddFieldReq;
import io.milvus.v2.service.collection.request.CreateCollectionReq;

MilvusClientV2 client = new MilvusClientV2(ConnectConfig.builder()
        .uri("http://localhost:19530")
        .token("root:Milvus")
        .build());

// Create schema
CreateCollectionReq.CollectionSchema schema = client.createSchema();

// Add the partition key
schema.addField(AddFieldReq.builder()
        .fieldName("my_varchar")
        .dataType(DataType.VarChar)
        .maxLength(512)
        // highlight-next-line
        .isPartitionKey(true)
        .build());

import { MilvusClient, DataType } from "@zilliz/milvus2-sdk-node";

const address = "http://localhost:19530";
const token = "root:Milvus";
const client = new MilvusClient({address, token});

// 3. Create a collection in customized setup mode
// 3.1 Define fields
const fields = [
    {
        name: "my_varchar",
        data_type: DataType.VarChar,
        max_length: 512,
        // highlight-next-line
        is_partition_key: true
    }
]

export schema='{
        "autoId": true,
        "enabledDynamicField": false,
        "fields": [
            {
                "fieldName": "my_id",
                "dataType": "Int64",
                "isPrimary": true
            },
            {
                "fieldName": "my_vector",
                "dataType": "FloatVector",
                "elementTypeParams": {
                    "dim": "5"
                }
            },
            {
                "fieldName": "my_varchar",
                "dataType": "VarChar",
                "isPartitionKey": true,
                "elementTypeParams": {
                    "max_length": 512
                }
            }
        ]
    }'

Set Partition Numbers

When you designate a scalar field in a collection as the Partition Key, Milvus automatically creates 16 partitions in the collection. Upon receiving an entity, Milvus chooses a partition based on the Partition Key value of this entity and stores the entity in the partition, resulting in some or all partitions holding entities with different Partition Key values.

You can also determine the number of partitions to create along with the collection. This is valid only if you have a scalar field designated as the Partition Key.

client.create_collection(
    collection_name="my_collection",
    schema=schema,
    # highlight-next-line
    num_partitions=1024
)

import io.milvus.v2.service.collection.request.CreateCollectionReq;

CreateCollectionReq createCollectionReq = CreateCollectionReq.builder()
                .collectionName("my_collection")
                .collectionSchema(schema)
                .numPartitions(1024)
                .build();
        client.createCollection(createCollectionReq);

await client.create_collection({
    collection_name: "my_collection",
    schema: schema,
    num_partitions: 1024
})

export params='{
    "partitionsNum": 1024
}'

export CLUSTER_ENDPOINT="http://localhost:19530"
export TOKEN="root:Milvus"

curl --request POST \
--url "${CLUSTER_ENDPOINT}/v2/vectordb/collections/create" \
--header "Authorization: Bearer ${TOKEN}" \
--header "Content-Type: application/json" \
-d "{
    \"collectionName\": \"myCollection\",
    \"schema\": $schema,
    \"params\": $params
}"

Create Filtering Condition

When conducting ANN searches in a collection with the Partition Key feature enabled, you need to include a filtering expression involving the Partition Key in the search request. In the filtering expression, you can restrict the Partition Key value within a specific range so that Milvus restricts the search scope within the corresponding partitions.

The following examples demonstrate Partition-Key-based filtering based on a specific Partition Key value and a set of Partition Key values.

# Filter based on a single partition key value, or
filter='partition_key == "x" && <other conditions>'

# Filter based on multiple partition key values
filter='partition_key in ["x", "y", "z"] && <other conditions>'

// Filter based on a single partition key value, or
String filter = "partition_key == 'x' && <other conditions>";

// Filter based on multiple partition key values
String filter = "partition_key in ['x', 'y', 'z'] && <other conditions>";

// Filter based on a single partition key value, or
const filter = 'partition_key == "x" && <other conditions>'

// Filter based on multiple partition key values
const filter = 'partition_key in ["x", "y", "z"] && <other conditions>'

# Filter based on a single partition key value, or
export filter='partition_key == "x" && <other conditions>'

# Filter based on multiple partition key values
export filter='partition_key in ["x", "y", "z"] && <other conditions>'
